Digital Manifold Gauge Vacuum Pressure Temperature Leakage Tester Fluoride Meter HVAC System Gauge for Air Conditioner Refrigerator
Digital Manifold Gauge Vacuum Pressure Temperature Leakage Tester Fluoride Meter HVAC System Gauge for Air Conditioner Refrigerator
5
100
Model TIGMDQJP
Availability: In Stock
Availability: In Stock
$65.99
Ex Tax: $65.99
Ex Tax: $65.99

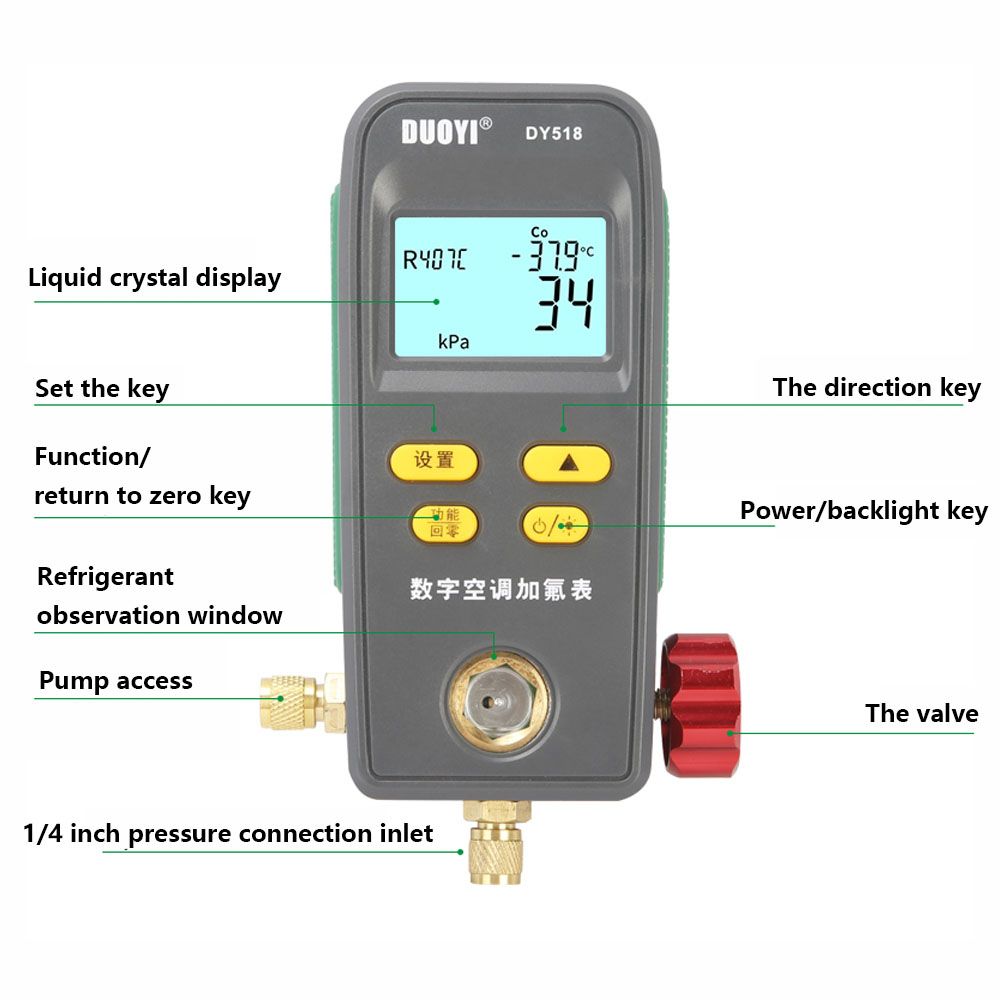

Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.
Features:

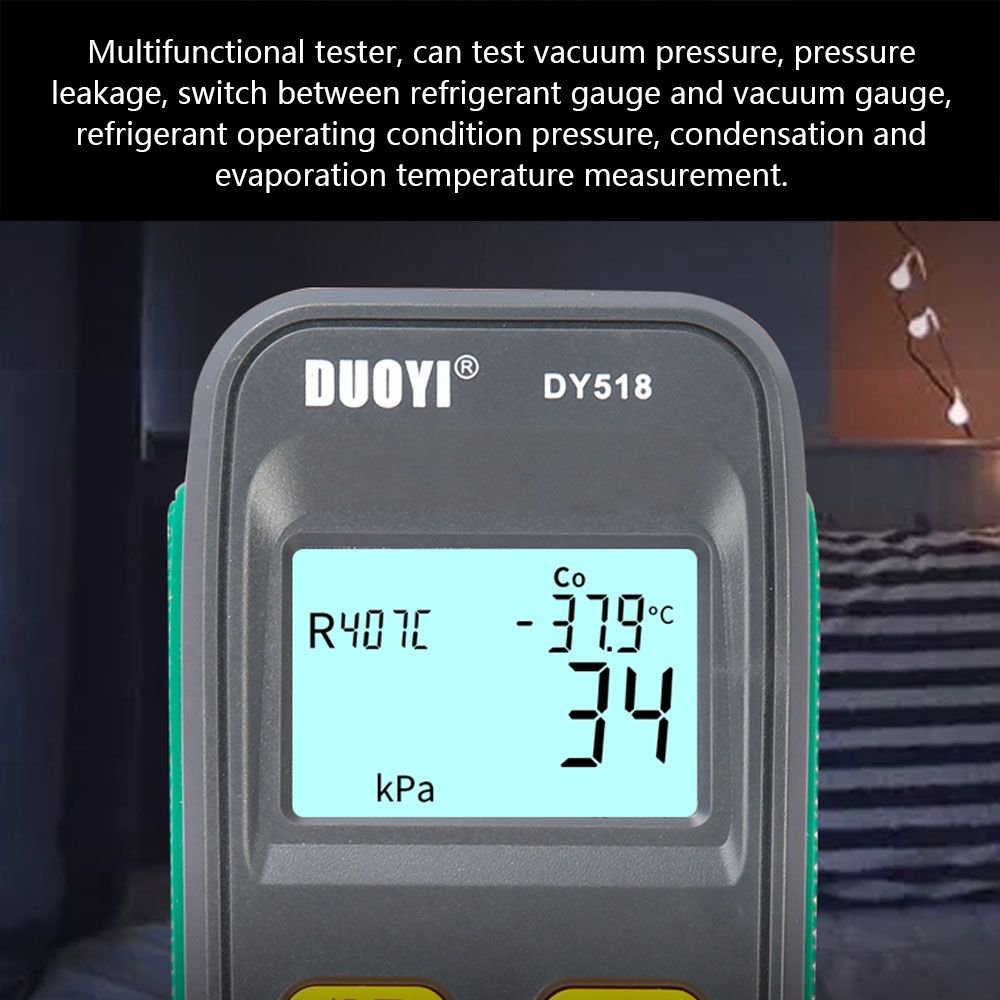

Multifunctional tester, can test vacuum pressure, pressure leakage, switch between refrigerant gauge and vacuum gauge, refrigerant operating condition pressure, condensation and evaporation temperature measurement.

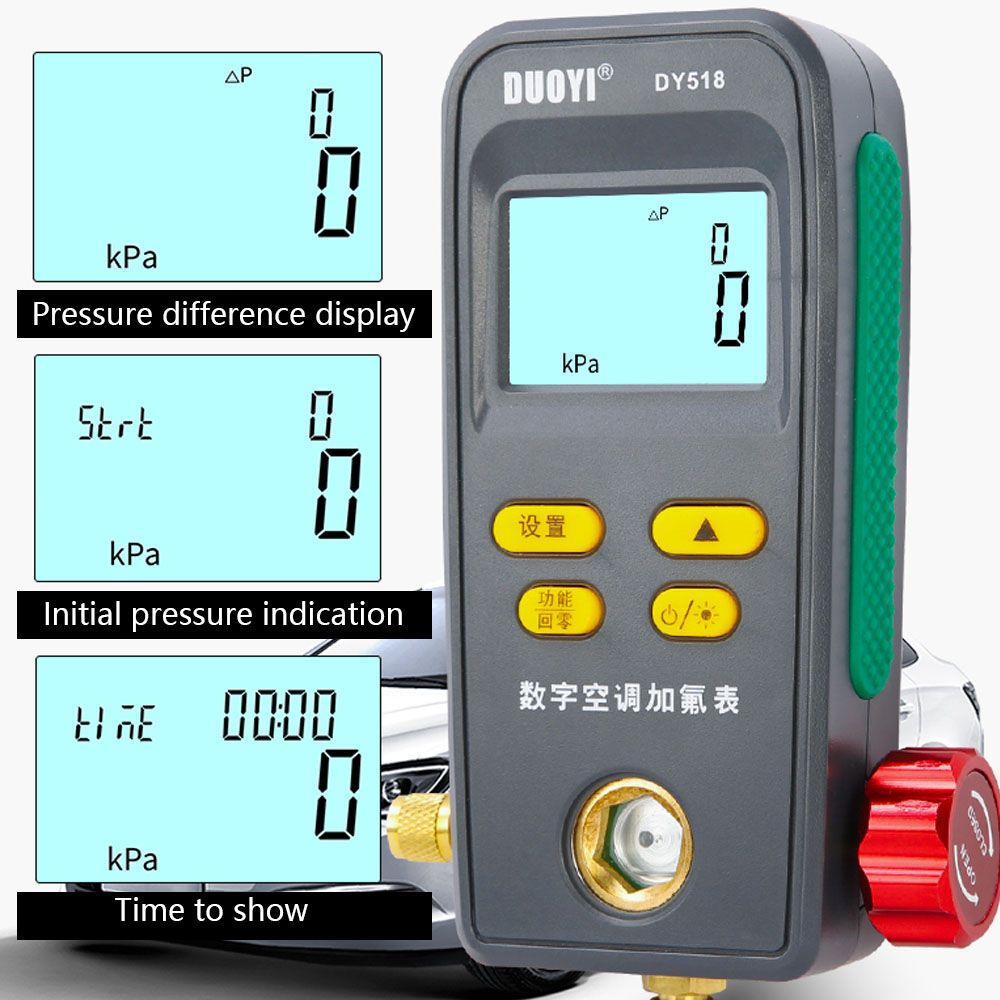

The pressure-holding leak test function of the instrument is mainly used to test the leakage of the refrigeration system. The test pipeline is pressurized to a certain value (or vacuum state) and then stopped, and the pressure changes within a period of time.

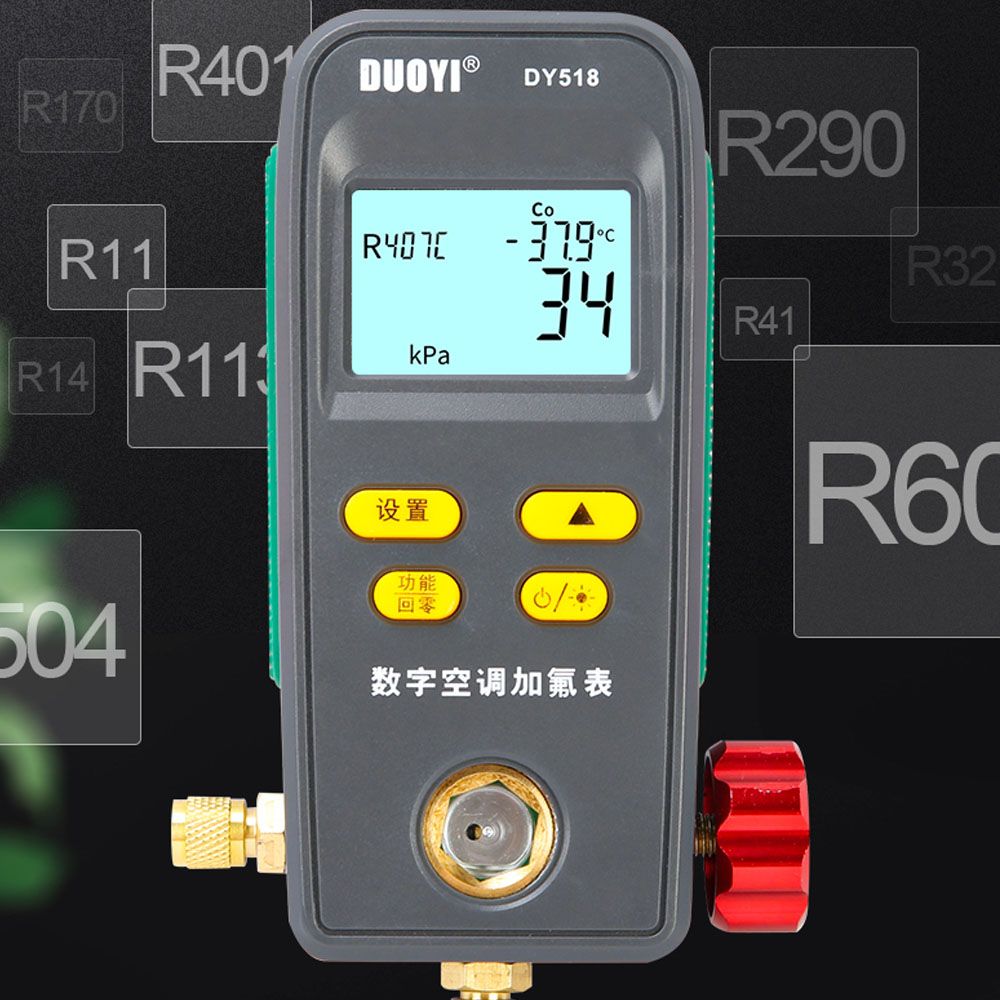

Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data.
Backlit large screen, clear data, no need to worry about the dark environment. Long-life valves switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.
Specifications:
Material: ABS
Pressure Test Unit: Kpa; Mpa; bar; inHg; PSI
Pressure Test Range: 0Kpa-6000Kpa
Pressure Test Resolution: 1Kpa
Pressure Test Accuracy: ±0.5%+5dgt
Pressure Overload Limit: 10000Kpa(10Mpa;100bar)
Vacuum Test Unit: Kpa; Mpa; bar; inHg; PSI
Vacuum Test Range: -101Kpa-0Kpa
Vacuum Resolution: 1Kpa

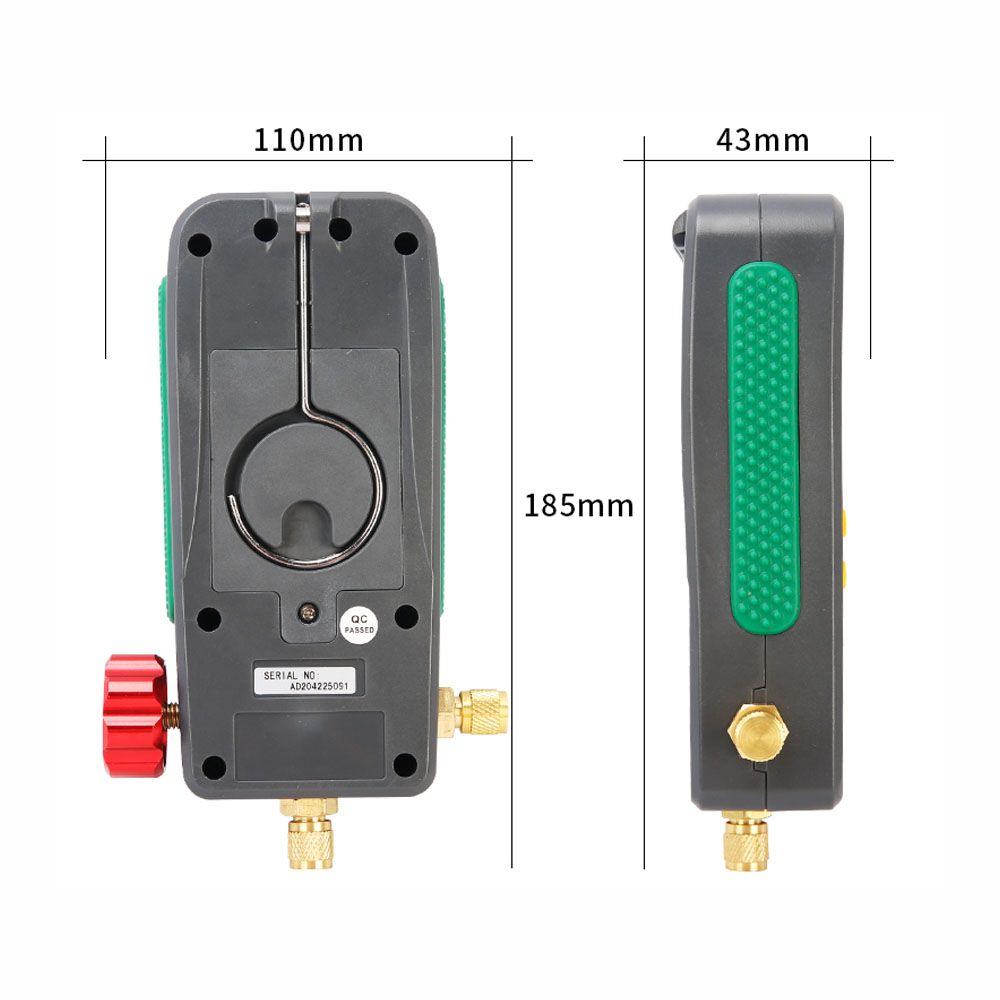

Item Size: 185 * 110 * 43mm/ 7.3 * 4.3 * 1.7in
Package Size: 200 * 150 * 60mm/ 7.9 * 5.9 * 0.2in
Package Weight: 558g/ 19.7oz
Packing List:
1 * Digital Manifold Gauge
1 * Portable Bag
1 * Manual
Features:
Multifunctional tester, can test vacuum pressure, pressure leakage, switch between refrigerant gauge and vacuum gauge, refrigerant operating condition pressure, condensation and evaporation temperature measurement.
The pressure-holding leak test function of the instrument is mainly used to test the leakage of the refrigeration system. The test pipeline is pressurized to a certain value (or vacuum state) and then stopped, and the pressure changes within a period of time.
Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data.
Backlit large screen, clear data, no need to worry about the dark environment. Long-life valves switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
Intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, inspection and maintenance of refrigeration equipment such as air-conditioning, refrigerator, cold storage.
Specifications:
Material: ABS
Pressure Test Unit: Kpa; Mpa; bar; inHg; PSI
Pressure Test Range: 0Kpa-6000Kpa
Pressure Test Resolution: 1Kpa
Pressure Test Accuracy: ±0.5%+5dgt
Pressure Overload Limit: 10000Kpa(10Mpa;100bar)
Vacuum Test Unit: Kpa; Mpa; bar; inHg; PSI
Vacuum Test Range: -101Kpa-0Kpa
Vacuum Resolution: 1Kpa
Item Size: 185 * 110 * 43mm/ 7.3 * 4.3 * 1.7in
Package Size: 200 * 150 * 60mm/ 7.9 * 5.9 * 0.2in
Package Weight: 558g/ 19.7oz
Packing List:
1 * Digital Manifold Gauge
1 * Portable Bag
1 * Manual
